4013A¡]300V / 20A¡^AC/DC Digitizing Power Meter

¡]1~4CH¡^
¡]Includes 200A Inrush current measurement¡^

Description

• 4013A Digital Power Meter is designed to measure the power line parameters of AC / DC and DC / DC power supply. It is suitable for AC / DC Adapter, Charger, Quick Charger, LED Driver and DC / DC Converter. It is also suitable for uninterruptible power supply UPS, Regulators AVR, Inverter, batteries, AC / DC power supply / components ... and other applications.
• 4013A digital power meter contains 1 to 4 channels digital power meters, each power meter has a group of high-speed 12-Bits A / D Converter, sampling and converting the voltage and current signals respectively. After the conversion, the data is calculated by a high-speed 16-Bits processor. After the calculation is completed, the data is transmitted to the host processor and read the relevant information through the RS-232 interface.

Features

• Suitable for ATE: 305V 20A, 6000W AC/DC Digital Power Meter
• Voltage Range¡G30 / 305 Vrms¡F40 / 400Vdc
• Current Range¡G0.02 / 0.2 / 2 / 20Arms¡B200Arms¡]for Inrush¡^¡F0.02 / 0.2 / 2 / 20Adc¡B200Adc¡]for Inrush¡^
• Measure AC / DC voltage, AC / DC current, AC / DC power,AC power factor, AC frequency, and Inrush Current
• Measuring frequency range DC¡B40~70Hz
• Meter update rate can be programmed
• Inrush Delay / Period¡G0~99.9ms / 0.1~99.9s can be programmed to get accurate Inrush Current measurement

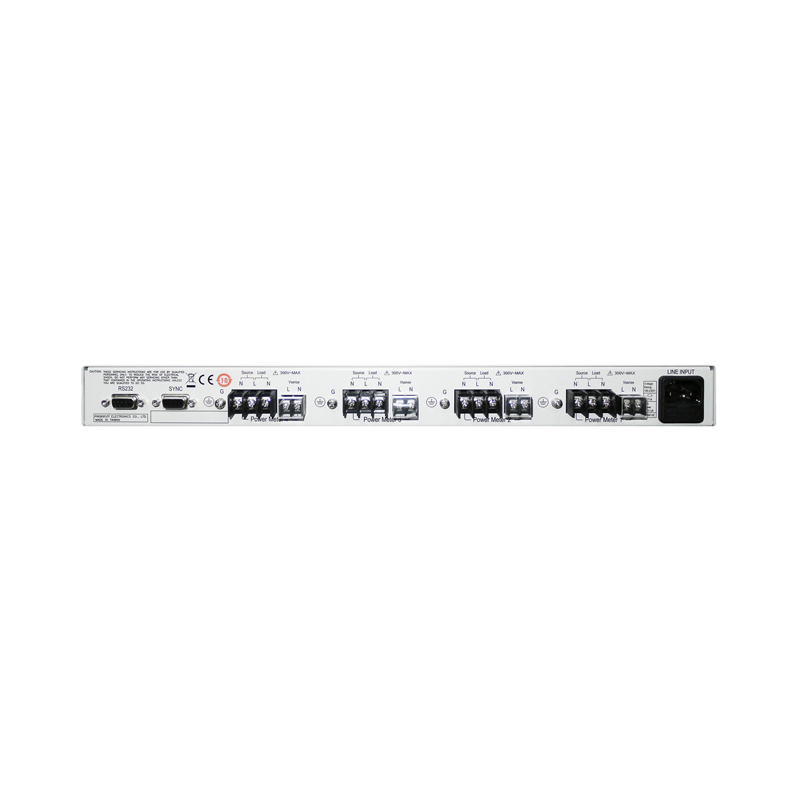

• Measuring module: 1 ~ 4CH, standard is 4 channels option 1, 2, 3 Channel is available
• The built-in internal low-pass filter (50KHz) can eliminate unnecessary high-frequency interference

Specifications
